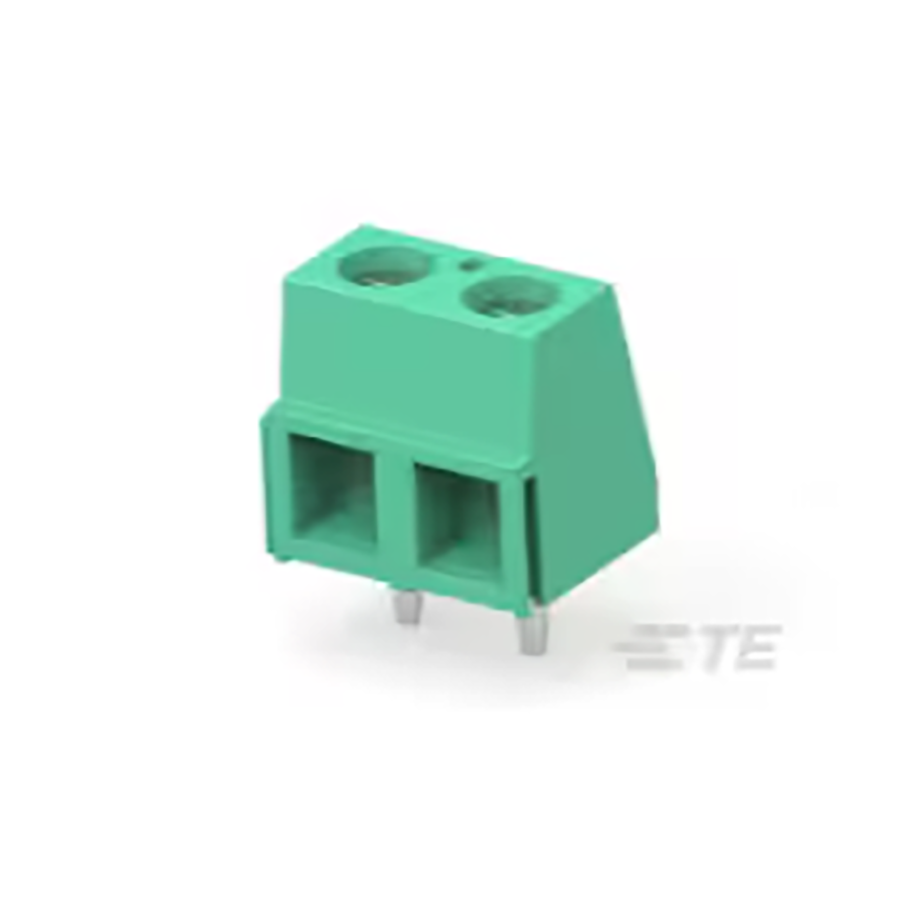

282837-2
Manufacturer:
TE Connectivity
Mfr.Part #:
282837-2
Datasheet:
Description:
Terminal Blocks Through Hole 2 5.08 mm 13.5 A 300 V 28 AWG to 16 AWG
| Parameter | Value |
|---|---|
| Length | 10.76 mm |
| Width | 11.5 mm |
| Termination | Screw |
| Max Operating Temperature | 110 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Height | 10.3 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 8.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 5.08 mm |
| Current | 13.5 A |
| Current Rating | 13.5 A |
| Max Current Rating | 13.5 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Number of Circuits | 2 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Green |
| Gender | Female |
| Number of Contacts | 2 |
| ELV | Compliant |
| Number of Poles | 2 |
| Connector Type | Receptacle |
| Wire/Cable Gauge | 30 AWG |
| Thread Size | M3 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 250 V |
| Max Supply Voltage (AC) | 250 V |
| Wire Gauge (Max) | 28 AWG |
| Wire Gauge (Min) | 16 AWG |
| Housing Color | Green |
| Plating | Brass |
| Tail Length | 3.5 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Connection Method | Screw |
| Wire Gauge Range | 28 AWG to 16 AWG |
Stock: 17180
Distributors
pcbx
pcbxUnit Price$0.40694
Ext.Price$0.40694
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.40694 | $0.40694 |
| 10 | $0.32402 | $3.24020 |
| 25 | $0.29837 | $7.45925 |
| 50 | $0.26930 | $13.46500 |
| 100 | $0.24366 | $24.36600 |
| 300 | $0.21031 | $63.09300 |
| 500 | $0.20114 | $100.57000 |
| 1000 | $0.19236 | $192.36000 |
